• Battery - 78 Amp-Hr
• Fleet Telematics Modem
• Hill Start Assist
• Twin I-Beam Independent Front Suspension

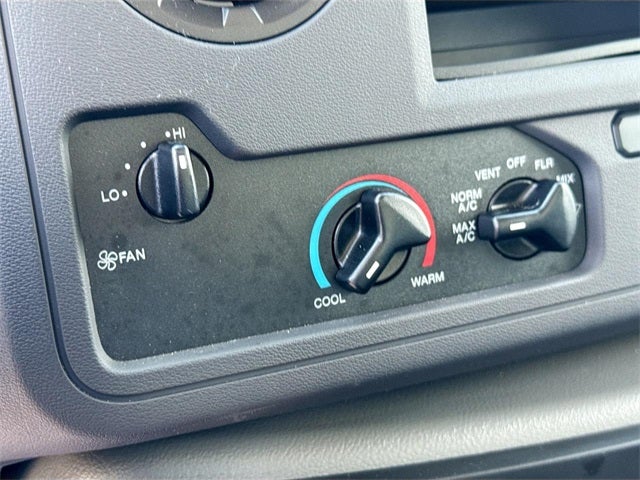

• Air Conditioning
• Am/Fm Radio W/ Bluetooth®
• Black Vinyl Floor Covering
• Glove Box With Powerpoint
• Powerpoint - 12V (Front)

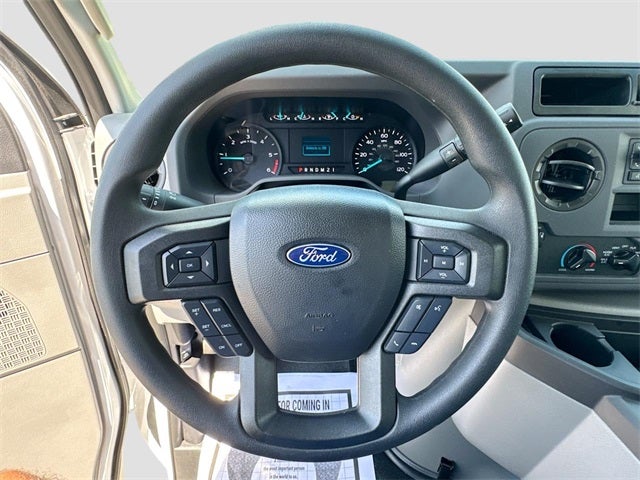

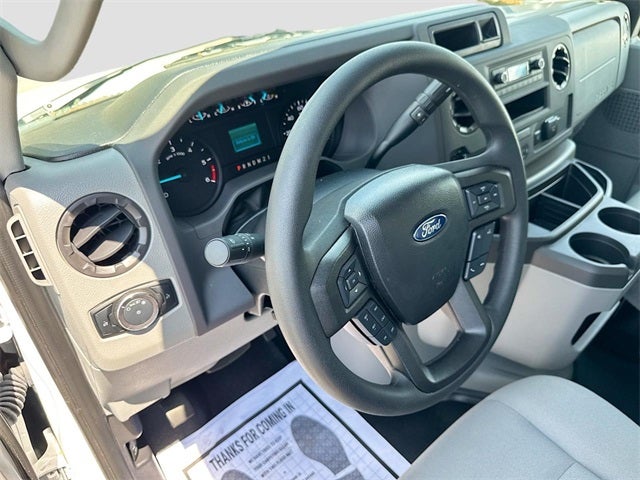

• Steering - Tilt/Telescopic
• Tachometer
• Vinyl Front Headliner
• Vinyl Sun Visors

• 3 Point Safety Belts
• 4-Wheel Anti-Lock Disc Braking System
• Driver/Passenger Air Bags
• Electronic Stability Cntrl
• Tire Pressure Monitor Sys
• Traction Control

780A

High-Series Exterior Upgrade Package

• High Series Exterior Upgrade Package
• Order Code 780A

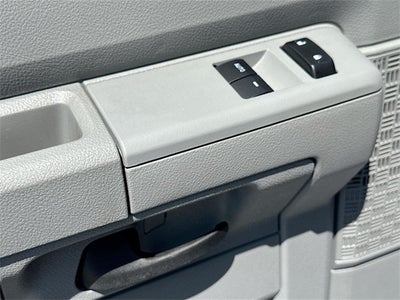

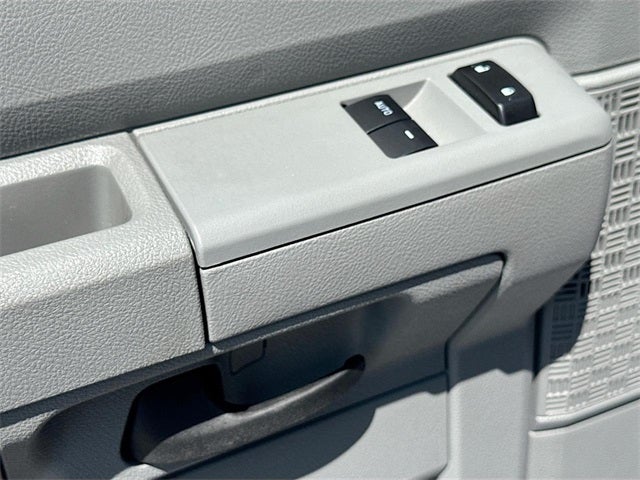

• Power Equipment Group
• License Plate Bracket
• Frame Pucks (Isolators)
• Front Chrome Bumper
• Chrome Grille
• Vinyl Floor Covering

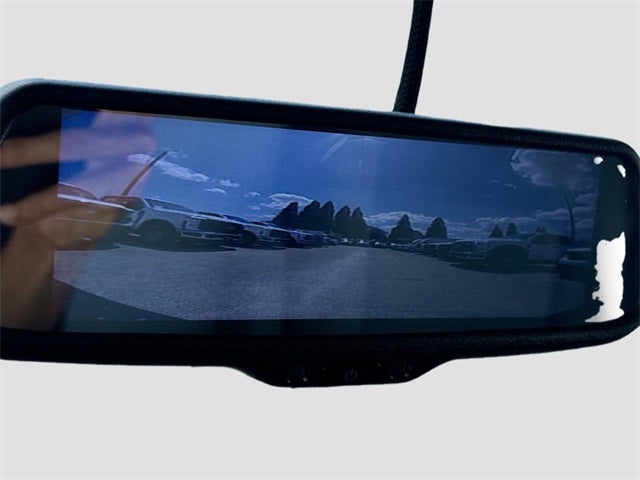

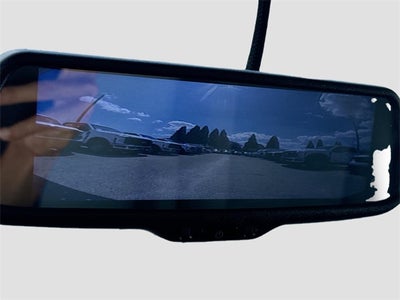

• Rear View Camera Kit
• B-Pillar Trim Kit
• Tilt steering wheel
• Voltmeter
• Telescoping steering wheel
• Tachometer
• Passenger seat mounted armrest
• Driver door bin
• Air Conditioning
• Power steering

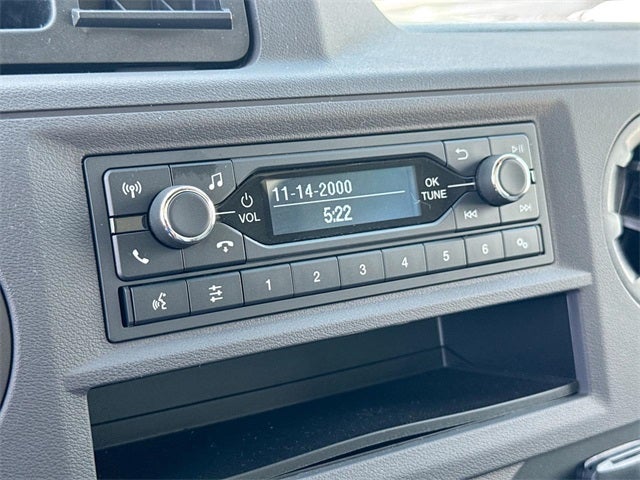

• Radio: AM/FM Stereo w/Clock Display & 2 Speakers
• 2 Speakers
• AM/FM radio
• Front wheel independent suspension
• Front anti-roll bar
• ABS brakes
• 4-Wheel Disc Brakes
• Dual front impact airbags
• Traction control
• Passenger door bin

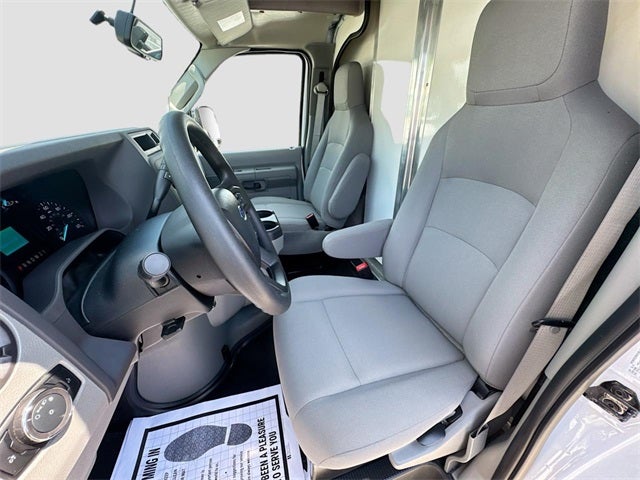

• Dual High Back Buckets

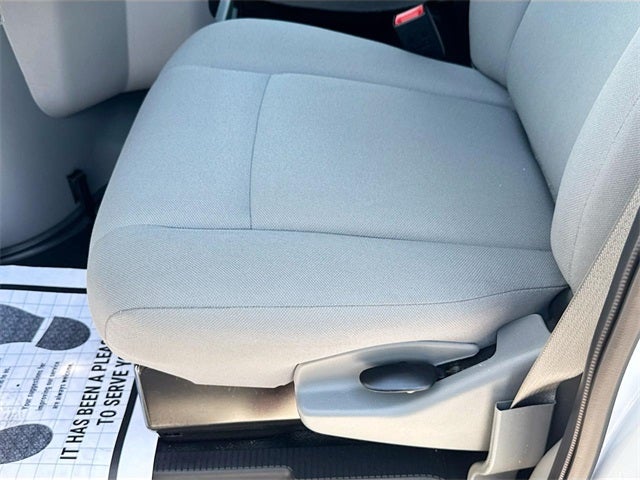

• Vinyl Bucket Seats
• Front Bucket Seats
• Driver's Seat Mounted Armrest
• 16" x 7" White Painted Steel Wheels
• Cruise Control
• Variably intermittent wipers
• Electronic Stability Control
• Fully automatic headlights
• 4.10 Axle Ratio

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 210
• Weight Information
• Base Curb Weight (lbs): 4911
• Base Curb Weight (lbs): 4914
• Base Curb Weight (lbs): 4907
• Gross Axle Wt Rating - Front (lbs): 4200
• Gross Axle Wt Rating - Rear (lbs): 6084
• Curb Weight - Front (lbs): 2940
• Curb Weight - Rear (lbs): 1967

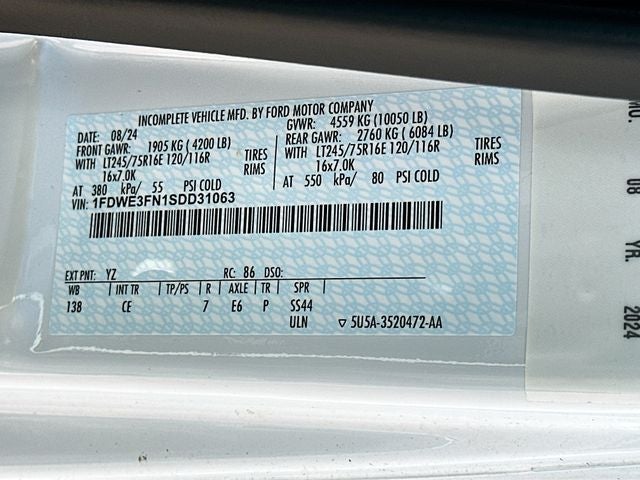

• Gross Vehicle Weight Rating Cap (lbs): 10050
• Gross Combined Wt Rating (lbs): 18500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 8450
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 845
• Maximum Trailering Capacity (lbs): 8450
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 4200
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 5000
• Axle Capacity - Rear (lbs): 7800
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.6
• Rear Brake Rotor Diam x Thickness (in): 13.6
• Tires
• Front Tire Order Code: T38
• Rear Tire Order Code: T38

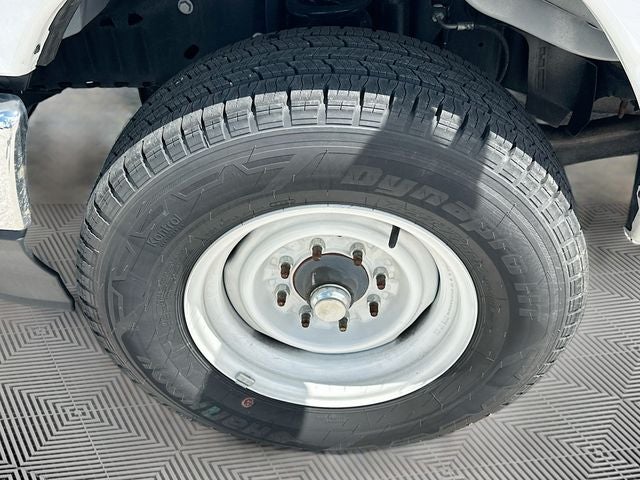

• Front Tire Size: LT245/75SR16
• Rear Tire Size: LT245/75SR16
• Front Tire Capacity (lbs): 4600
• Rear Tire Capacity (lbs): 6084
• Revolutions/Mile @ 45 mph - Front: 677
• Revolutions/Mile @ 45 mph - Rear: 677
• Wheels

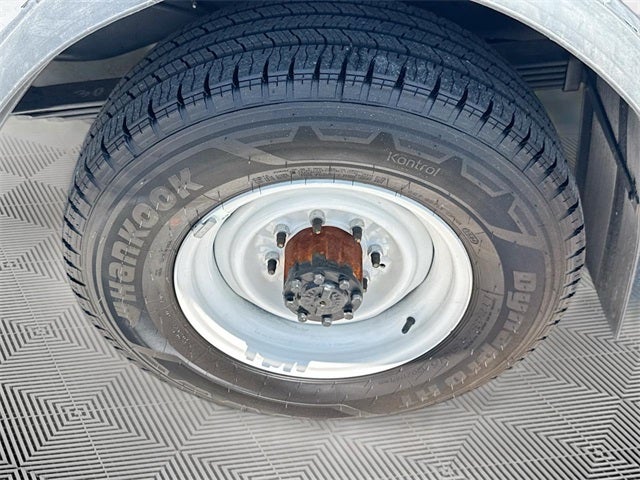

• Front Wheel Size (in): 16 X 7
• Rear Wheel Size (in): 16 X 7
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 48.6
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40
• Exterior Dimensions
• Wheelbase (in): 138
• Length, Overall (in): 241.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 80.4
• Overhang, Rear w/o bumper (in): 68.5
• Cab to Axle (in): 80
• Cab to End of Frame (in): 148.5
• Ground to Top of Load Floor (in): 25.9
• Interior Dimensions
• Passenger Capacity: 2
• Front Head Room (in): 42
• Front Leg Room (in): 42.1
• Front Shoulder Room (in): 68.1
• Front Hip Room (in): 65.6
• Summary

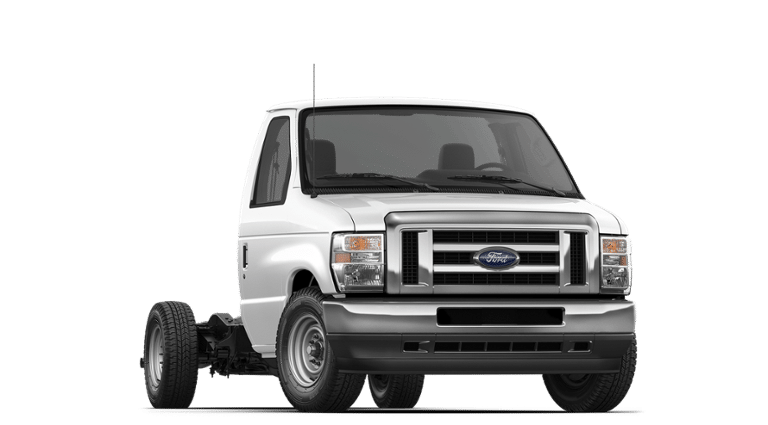

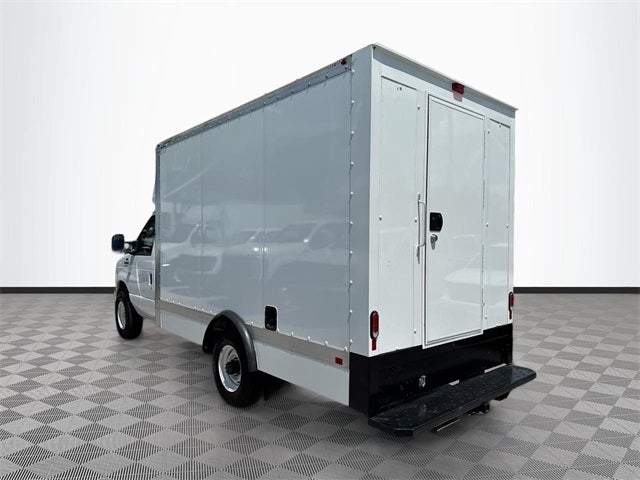

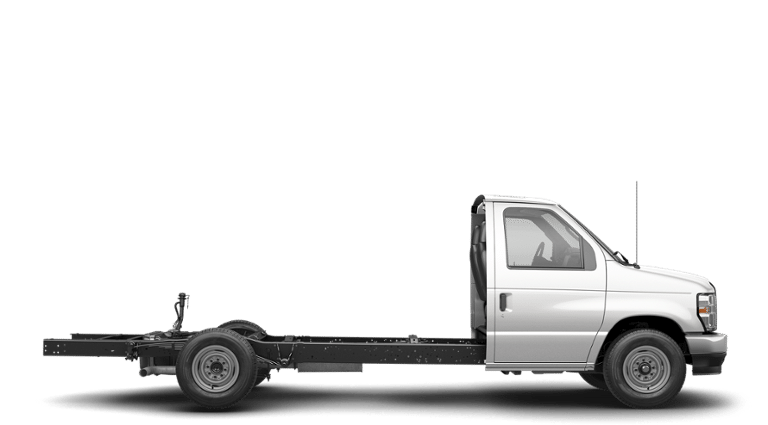

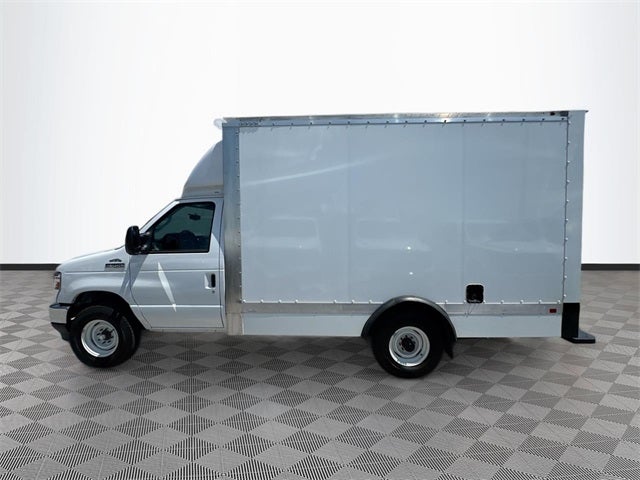

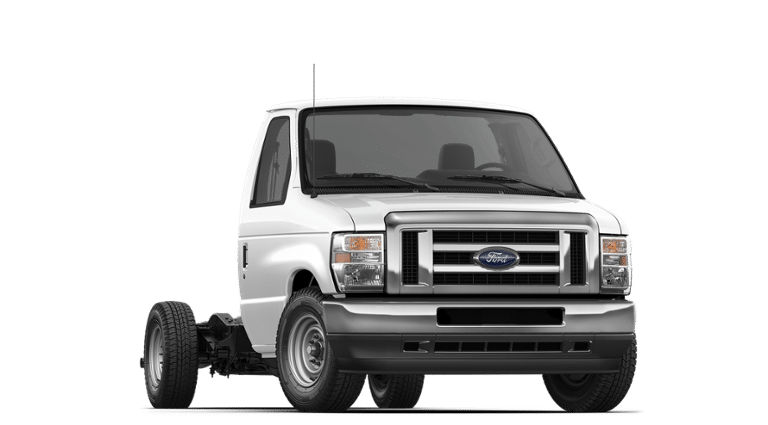

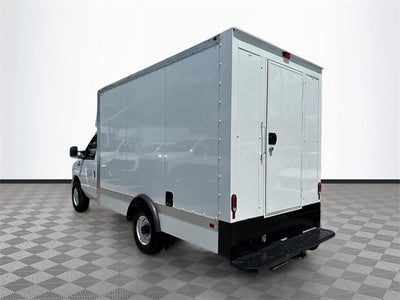

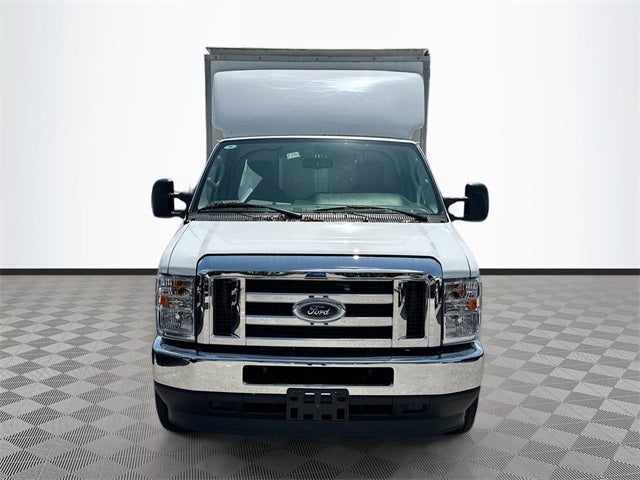

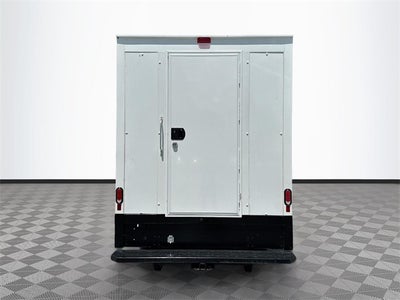

• Vehicle Name: Ford E-Series Cutaway
• Body Style: Chassis
• Body Code: H
